Experiment Specification TC9.TS01.ES01

Co-simulation for performance evaluation of direct congestion management method

Research Infrastructure

CEA

Experiment Realisation

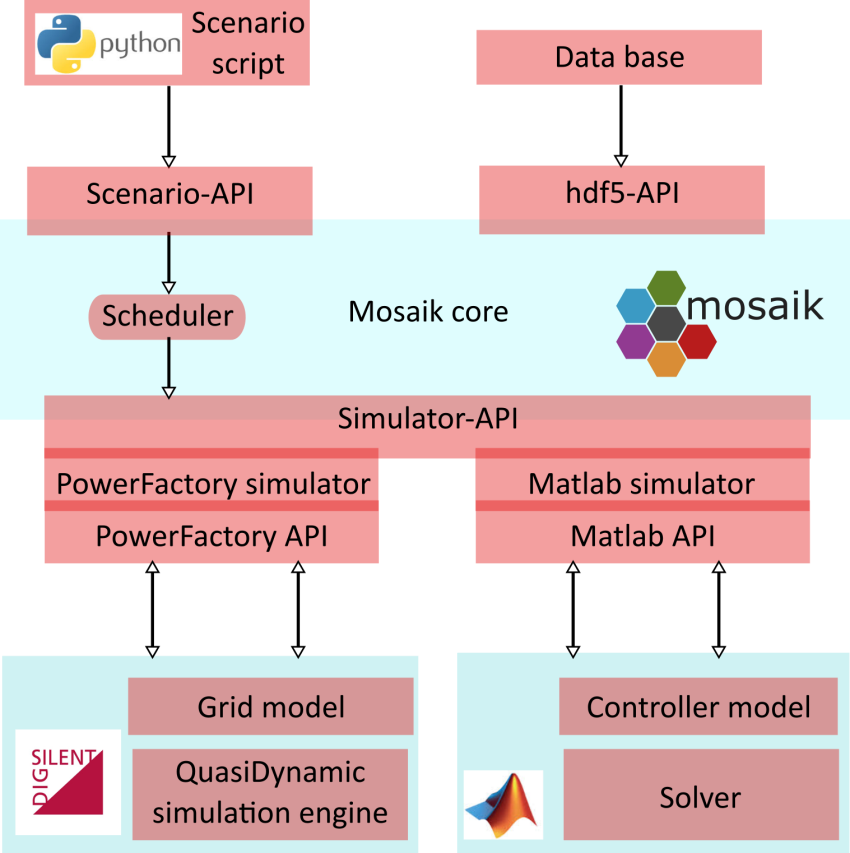

The experiment is realized by performing a co-simulation setup between PowerFactory and Matlab using Mosaik as a master algorithm.

The congestion management functionality and all the necessary control functions are modeled in Matlab. A realistic LV network with high penetration of PV systems is implemented in PowerFactory and is run in QuasiDynamic mode.

Experiment Setup


Experimental Design and Justification

Precision of equipment and measurement uncertainty

  • N/a

Storage of experiment data

  • hdf5 or csv files
Last modified 09.03.2022
